Viswell Technology Co.,Ltd - PC-定電流(手動/程控)調光器/LED控制器/電源供應器/電源控制器/光控器/光源控制器/led controller/constant current controller

Regardless of load impedance changes will automatically adjust the supply voltage to maintain a constant current in order to maintain a stable LED brightness
Drive with constant current LED regardless of brightness, stability and adjust the lighting of the degree will be better than the same brightness light source of constant voltage drive
And provide high-power constant current dimmer
Provide manual or RS-232 program control
Provide flash frequency function
International Universal full range AC input
Provide complete overheat / short circuit / over voltage / overload protection circuit measures

Used in photovoltaic, the LCD , connectors, plastic, metal and electronic industry, semiconductors, personal computers

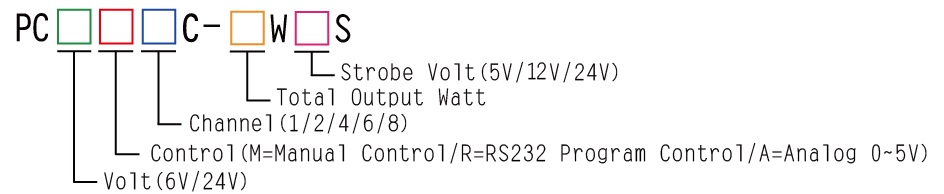

Model	PC6□1C	PC6□2C	PC6□4C	PC6□6C	PC6□8C
Channel	1	2	4	6	8
Input Voltage	AC100~240 Input
Output Voltage	DC 6V Max
Output Power	9W	18W	36W	54W	72W
Output Current	1.5A/CH
Humidity	20%~80% RH
Temperature	0℃~50℃
Control	Manual VR adjustment / RS232 program control

Model	PC24□1C	PC24□2C	PC24□4C	PC24□6C	PC24□8C
Channel	1	2	4	6	8
Input Voltage	AC100~240 Input
Output Voltage	DC 24V Max
Output Power	36W	65W	150W	216W	300W
Output Current	1.5A/CH
Humidity	20%~80% RH
Temperature	0℃~50℃
Control	Manual VR adjustment / RS232 program control

High Power RS-232 Program Control Constant Current Controllers

Model	PC24□1C-300W	PC24□2C-300W	PC24□1C-600W	PC24□2C-600W	PC24□4C-1200W	PC24□4C-2400WK1
Channel	1	2	1	2	4	4
Input Voltage	AC100~240 Input					AC200~240 Input
Output Voltage	DC 24V Max
Output Power	300W	300W	600W	600W	1200W	2400W
Output Current	12A/CH	6A/CH	25A/CH	12A/CH	12A/CH	25A/CH
Humidity	20%~80% RH
Temperature	0℃~50℃
Control	Manual VR adjustment / RS232 program control

Model	PC6□1C	PC6□2C	PC6□4C	PC6□6C
Channel	1	2	4	6
Input Voltage	AC100~240 Input
Output Voltage	DC 6V Max
Output Power	9W	18W	36W	54W
Output Current	1.5A/CH
Humidity	20%~80% RH
Temperature	0°C~50°C
Control	Manual VR adjustment / RS232 program control

Model	PC6□8C
Channel	8
Input Voltage	AC100~240 Input
Output Voltage	DC 6V Max
Output Power	72W
Output Current	1.5A/CH
Humidity	20%~80% RH
Temperature	0°C~50°C
Control	Manual VR adjustment / RS232 program control

Model	PC24□1C	PC24□2C	PC24□4C	PC24□6C
Channel	1	2	4	6
Input Voltage	AC100~240 Input
Output Voltage	DC 24V Max
Output Power	36W	65W	150W	216W
Output Current	1.5A/CH
Humidity	20%~80% RH
Temperature	0°C~50°C
Control	Manual VR adjustment / RS232 program control

Model	PC24□8C
Channel	8
Input Voltage	AC100~240 Input
Output Voltage	DC 24V Max
Output Power	300W
Output Current	1.5A/CH
Humidity	20%~80% RH
Temperature	0°C~50°C
Control	Manual VR adjustment / RS232 program control

High Power RS-232 Program Control Constant Current Controllers

Model	PC24□1C-300W	PC24□2C-300W	PC24□1C-600W	PC24□2C-600W
Channel	1	2	1	2
Input Voltage	AC100~240 Input
Output Voltage	DC 24V Max
Output Power	300W	300W	600W	600W
Output Current	12A/CH	6A/CH	25A/CH	12A/CH
Humidity	20%~80% RH
Temperature	0°C~50°C
Control	Manual VR adjustment / RS232 program control

Model	PC24□4C-1200W	PC24□4C-2400WK1
Channel	4	4
Input Voltage	AC100~240 Input	AC200~240 Input
Output Voltage	DC 24V Max	DC 24V Max
Output Power	1200W	2400W
Output Current	12A/CH	25A/CH
Humidity	20%~80% RH	20%~80% RH
Temperature	0°C~50°C	0°C~50°C
Control	Manual VR adjustment / RS232 program control	Manual VR adjustment / RS232 program control

【Constant Current Controllers】
